Boeing 777 Master Flight Display

A complete working representation of the Boeing 777 Master Flight Display.

Working Demonstration

Below is a partially working sample of the MFD that behaves in the same way as the app. Click on the menu items and interact with the screens presented.


Open Master Flight Display

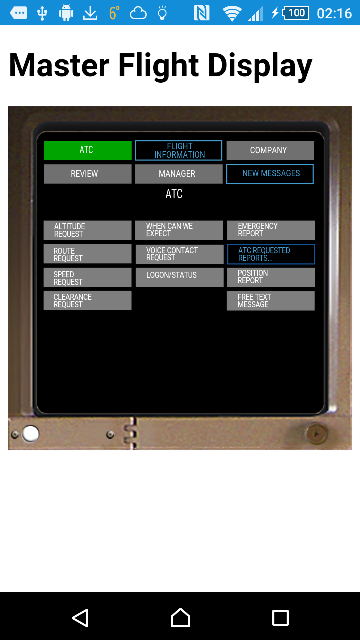

The main app page displays the main screen of the master flight display. Some of the menu buttons may be clicked on to display the associated screen.

Click On A Control

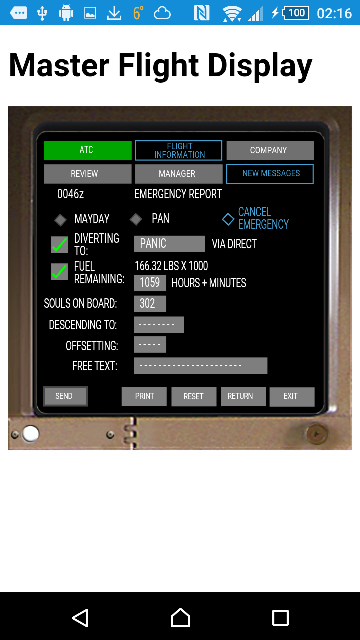

You can click on some of the controls on the Master Flight Display. The Emergency Report screen shown on the left shows the 'Diverting To' and 'Fuel Remaining' check boxes selected.
